Model Numbers & Dimensions

Note (1) Standard SFL is set at 90% of gross volume with standard float type overfill valve.

Options available to increase Safe Fill Level to 95% - refer overfill options.

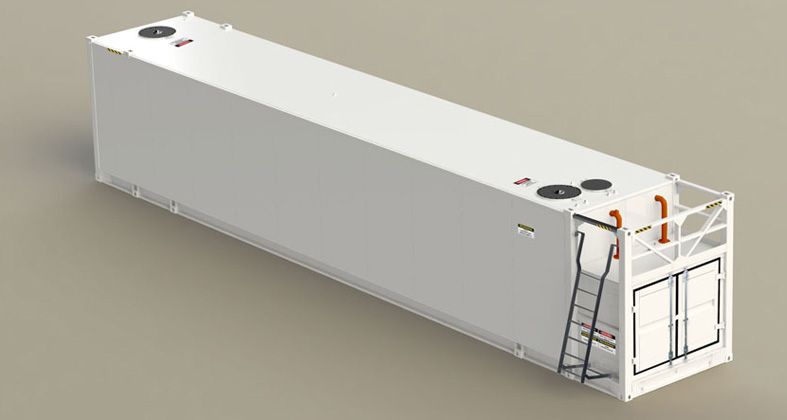

T-Serial Tank

◆ Self bunded with internal tank and external bund.

◆ Corner container lock castings.

◆ Internal ladder for access.

◆ Three 600mm manholes.

◆ Air breather vents for free venting.

◆ Containment compartment (internal bund) with emergency vent.

◆ Calibrated contents dip stick.

◆ Interstitial space dip stick.

◆ Top roof section designed to release water as it sits above the side rails of the tank.

◆ Lockable top sump for access points.

◆ Additional sockets,doubler pad points available to suit applications.

◆ Unit sand blasted to as2.5

◆ Underside of the base bitumen coated for protection.

◆ Paint coating to c5-1 harsh environment standard, three coats Hempel paint to 240 micron thickness.

◆ Statutory signage to suit end use location.

◆ Tank manufacture and compliance plates.
